Guide to Comprehensive Evaluation of Circular Rail Suppliers: Systematic Analysis of Quality Dimensions

The quality of the annular rail conveyor system needs to be evaluated comprehensively in multiple dimensions, covering key elements such as the manufacturer's technical strength, core component performance, material science application, precision manufacturing process and assembly engineering capabilities. This paper will analyze the quality evaluation system from three core dimensions, and provide an empirical explanation based on the technical advantages of Huiside Automation, an industry benchmark enterprise.

First, the manufacturer's technical strength assessment

1. High-tech enterprise qualification and R & D system

Manufacturers that have been certified as national high-tech enterprises (such as Huiside Automation) typically have the following characteristics:

Deep technical accumulation:Non-start-up or shell enterprises with continuous R & D investment, core technologies, and talent reserves.

Patent technical barriers:Holding domestic and foreign invention patents (e.g. V-rail structure patents), reflecting differentiated technical capabilities.

Quality word-of-mouth precipitation:Through internal ISO standardized production system and industry application verification (e.g. automotive parts, medicine, semiconductor).

2. Enterprise comprehensive qualification review

Credit and capital:Check the registered capital, legal dispute records and main business focus (e.g. Huiside focuses on the R & D and production of ring guides);

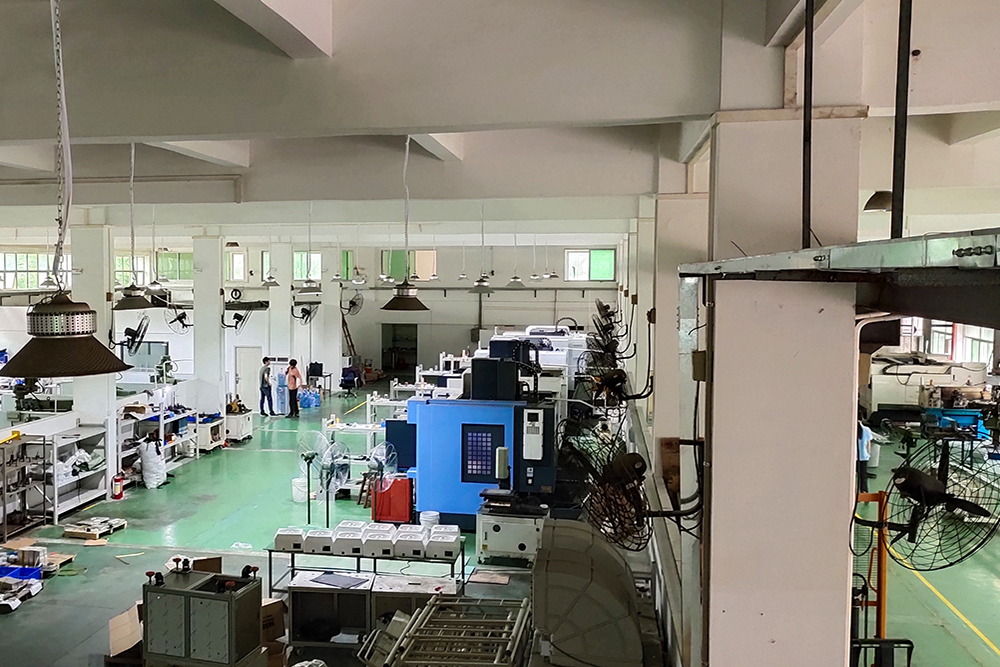

Capacity Guarantee:Own numerical control machine tools and testing workshops (such as Huiside independent core component production lines) to ensure supply chain controllability.

Technical relevance: As a high-tech enterprise, Huiside has achieved repeated positioning accuracy of ± 0.05mm through more than 10 years of technological accumulation, with special requirements up to ± 0.03mm. Its patented V-shaped rail design combines dust environment adaptability (scratch self-cleaning function) and high speed (2m/s) operation stability.

II. Selection of core components and application of materials science

1. Technical specifications for key components

2. Supply chain quality control

Huiside adopts a head supplier collaboration model (such as a designated brand servo system), and ensures the consistency of parts through an internal ISO9001 supply chain management system to avoid performance degradation caused by cost compression.

III. Precision manufacturing and assembly engineering capabilities

1. Core process technology

Rail processing:Numerical control grinding process (straightness ≤ 0.02/1000), high frequency/vacuum quenching treatment (hardness HRC55 +);

Tolerance control:Adhere to ISO 2768-mK standard to ensure slider fit accuracy (± 0.05mm).

2. Core elements of assembly engineering

Process standardization:SOP operation specification (reference plane calibration → pre-tightening force adjustment → lubrication system debugging);

Experience Dependence:Senior engineers achieve ± 0.05mm repeated positioning accuracy through laser interferometer/micrometer/high-precision calibration table and other tests, and the accuracy deviation rate caused by non-professional assembly exceeds 35%;

Huiside Practice:10,000-level dust-free workshop assembly environment + dynamic simulation test to solve the pain point of "precision attenuation" caused by user self-assembly.

Case comparison:Huiside achieves XYZ three-axis ± 0.05mm accuracy through chain drive optimization and swing arm positioning mechanism design, and its vertical dual-track system saves more than 30% of space in the automotive parts production line.

IV. Industry application verification and quality closed-loop

High-quality circular guides need to pass "technology research and development → precision manufacturing → scene verification" closed-loop:

Scene adaptability:Huiside Ring GuideThe system maintains stability in the dust environment (welding, woodworking), low noise and high clean production requirements for medical equipment, and the production capacity of new energy production lines is increased by 10-20 times.

Full cycle service:Provide one-stop support for installation and commissioning → regular maintenance → accessories speed (domestic response time < 48 hours).

Conclusion: The Core Characteristics of Quality Benchmarking Enterprises

The competitiveness of leading enterprises such as Huiside Automation is reflected in:

✅Technology-driven: V-shaped guide rail patent +±0.03mm ultra-high precision capability;

✅Manufacturing lean: Independent production of core components + over 20 professional production and processing techniques;

✅Engineering Empowerment: Two-way empowerment through cooperation between 10,000-level dust-free assembly workshop and engineering and technical colleges.

Selecting a supplier with the above characteristics can ensure the service life of the ring rail conveyor system for more than 5 years under severe scenarios such as high speed, dust, and high load.
