Structure and Application Case of Circulating Conveyor Line with Square Guide Rail

Square guide rail circular conveyor line structure

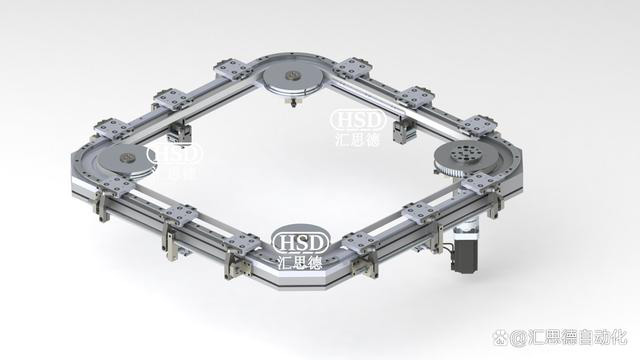

The square guide rail is a closed-loop guide rail composed of a linear guide rail with the same length on all four sides and a 90-degree curved guide rail at each corner. In the transmission system, the square guide rail circulation conveyor line using chain or belt drive mode will consist of 3 driven wheels plus 1 driving wheel.

Huiside square guide rail circulation conveyor line

The square guide rail circulation conveyor line is mainly composed of profile base frame, closed-loop guide rail, station sliding seat, transmission system (chain/belt/connecting rod plus gear or tooth plate), power system, drive control system, secondary positioning system, etc.

The square guide rail circulation conveyor line is commonly used in conventional 255mm diameter track minimum size of about 360mm * 360mm. If you need a smaller size square guide rail circulation conveyor line, it is usually recommended to use a circular guide rail circulation line.

Application case of square guide rail circulating conveyor line

Application case 1:

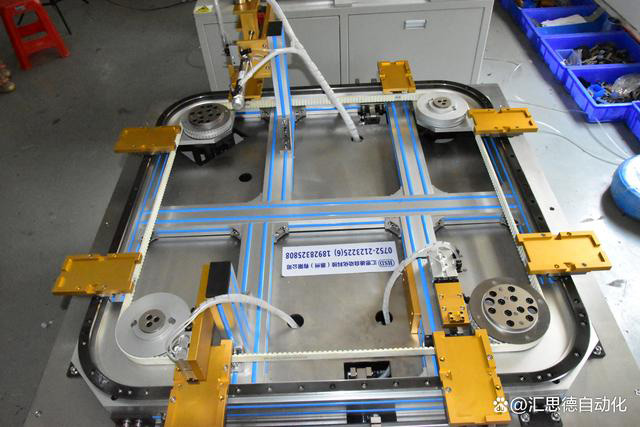

The square guide rail circulation conveyor line is used for the automatic grinding production line of mobile phone shells. It adopts belt drive, square guide rail, size 1 meter * 1 meter, 8 stations, 3 positioning stations, station spacing 500mm, moving time 2.5 seconds, load < 3 kg, positioning accuracy ± 0.05mm, subject to vertical positive pressure.

Application case 2:

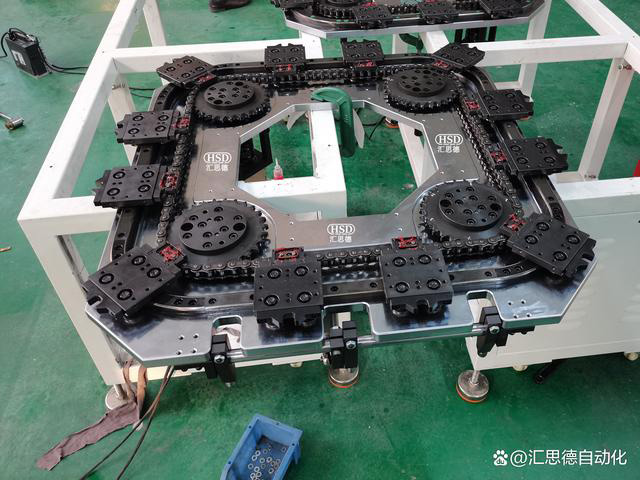

The square guide rail circulation conveyor line is used for the automatic assembly line of small cameras, using chain drive, square guide rail, baseplate size 1.1 meters * 1.1 meters, 12 stations, 3 positioning stations, station spacing 255mm, load < 5 kg, positioning accuracy ± 0.05mm, subject to vertical positive pressure.

Small square guide rail circulation conveyor lines are usually used for the production, assembly and transportation of automated precision equipment or instruments, or in high-precision technology and precision research equipment such as scientific research institutions and laboratories.
