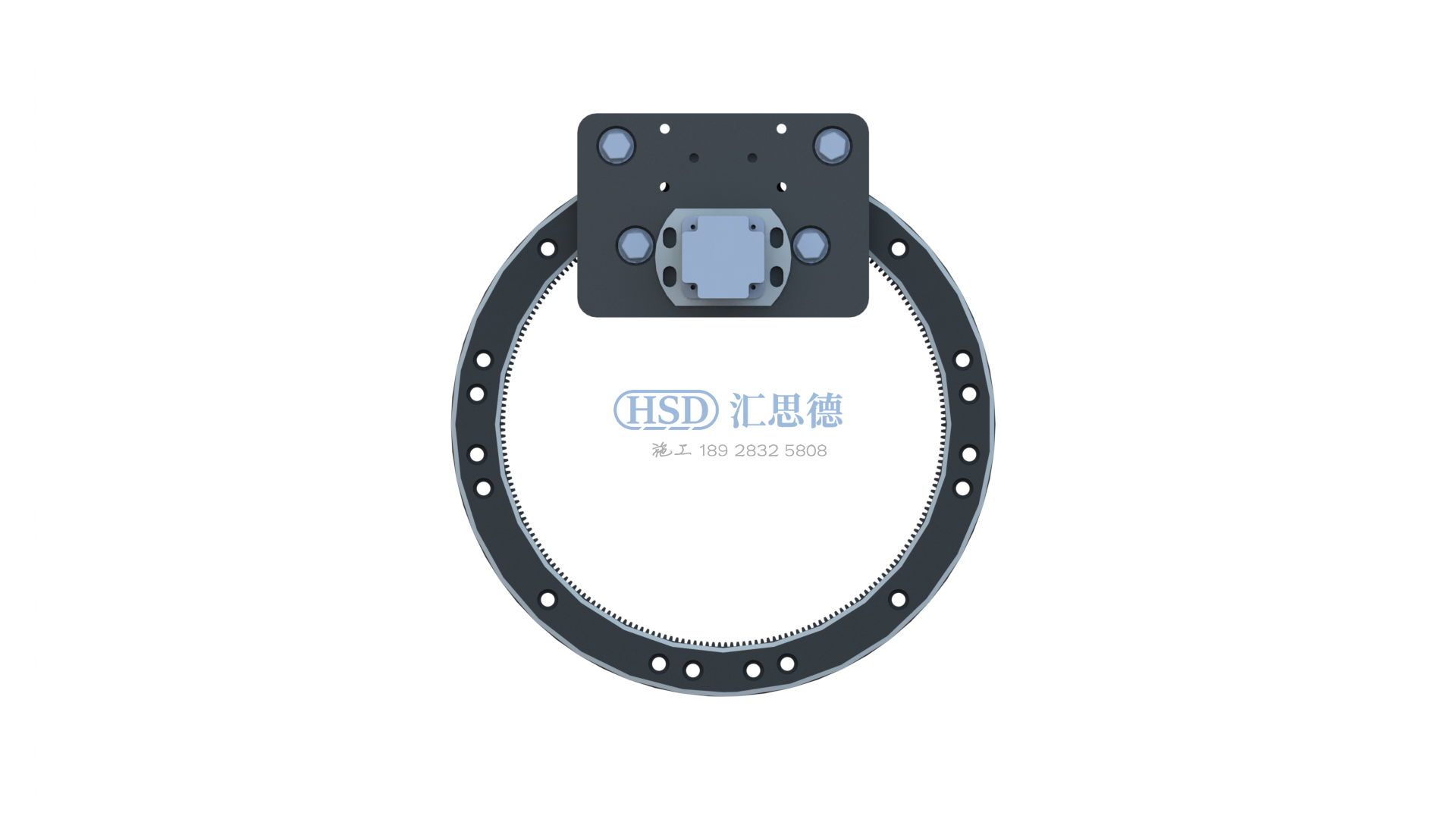

The 25 series custom toothed ring guide rails, the ring-toothed guide rail, combines the rack and guide rail for application, is lightweight, space-saving, independently controllable in power, and operates in conjunction with the gear slide seat, featuring stable operation, low noise, high positioning accuracy, simple and convenient assembly, and is suitable for more application scenarios.

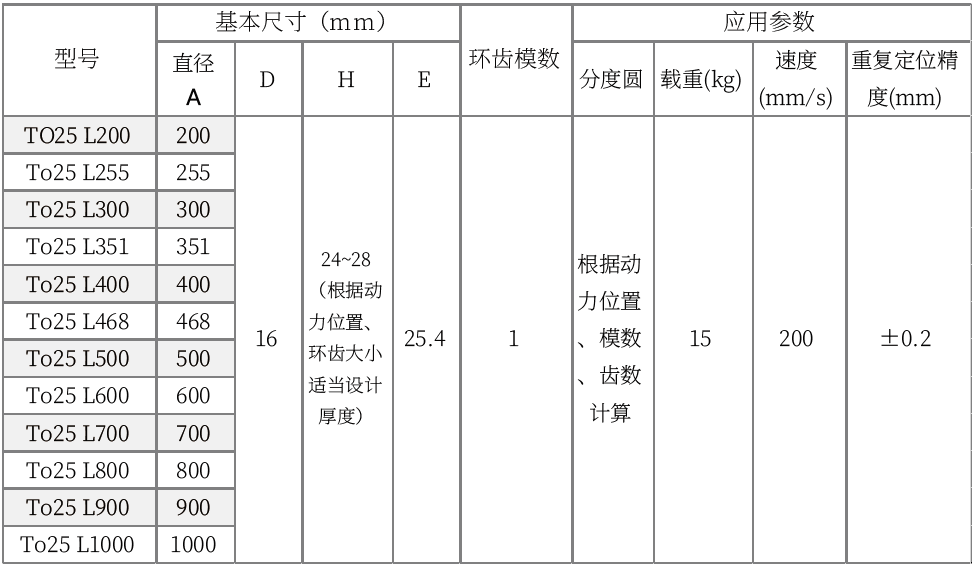

The parameters are applicable to split rack guides and integrated rack guides

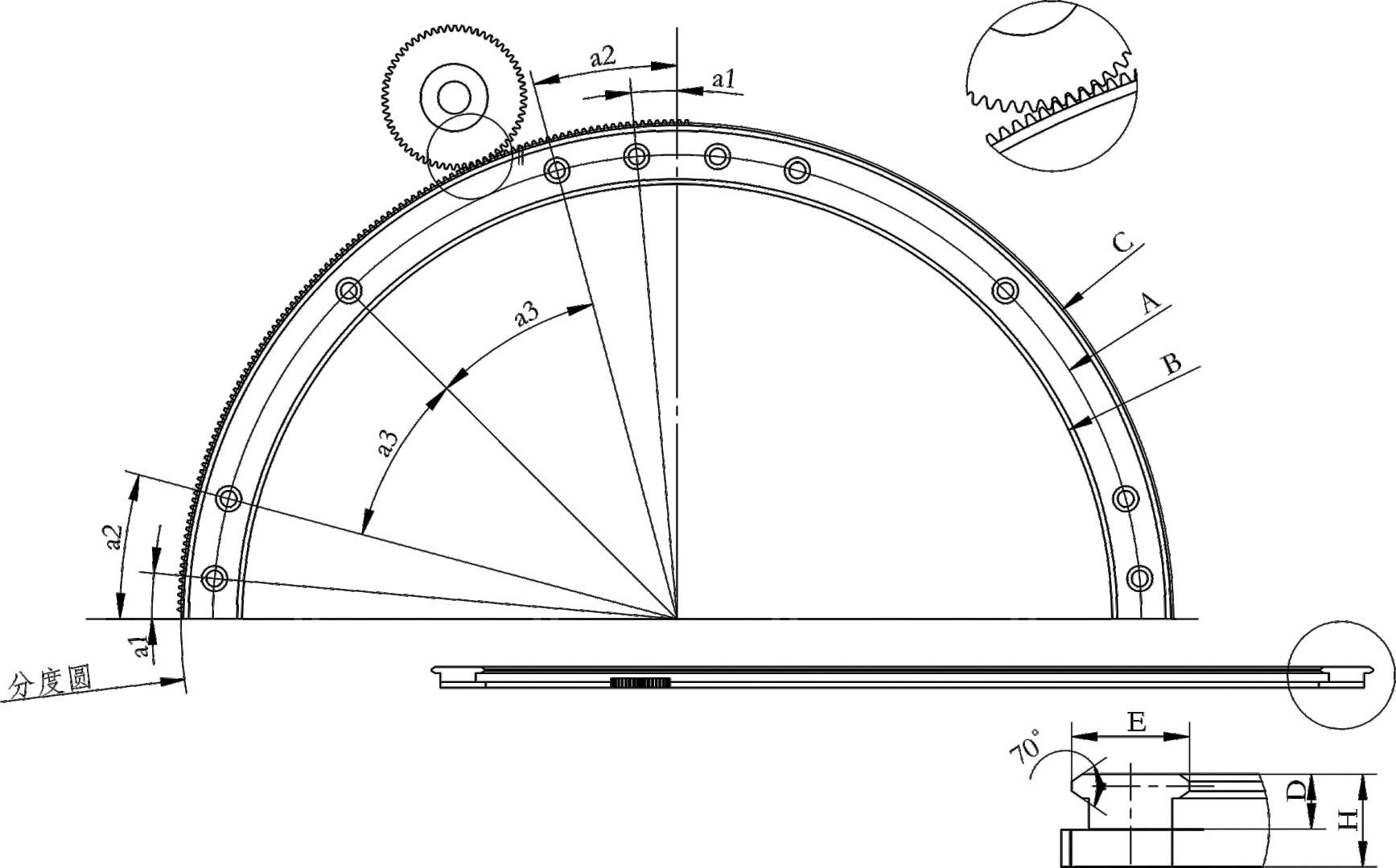

Standard opening, refer to 25 series arc guide rails (P5)
*The toothed opening module can be customized to accommodate either internal or external teeth based on specific requirements. Custom arc-shaped guide rails with varying degrees of tooth engagement are also available. For detailed specifications, please consult the engineering team.
