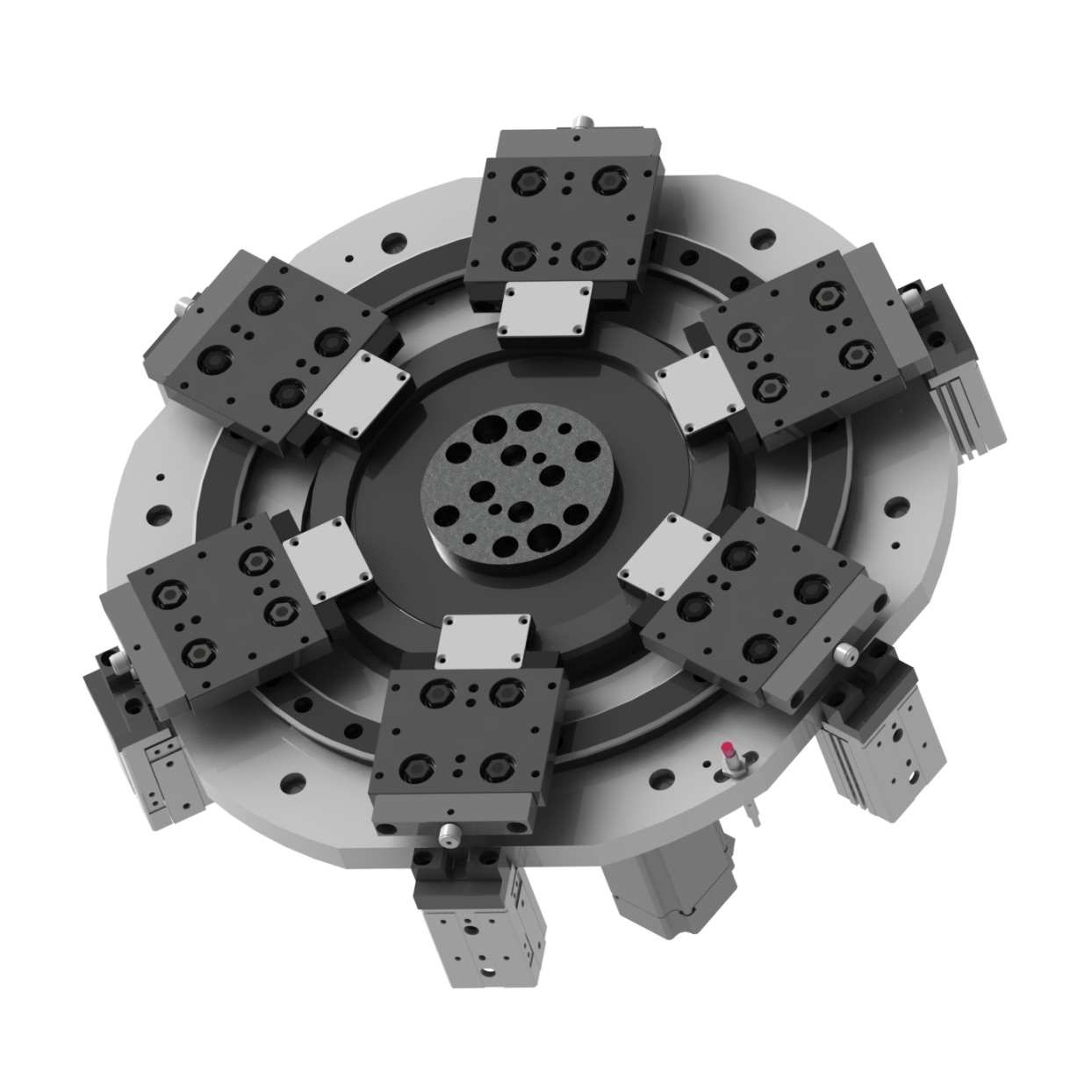

The circular ring-shaped guide rail circulation conveyor system can be customized with larger-diameter arcs to replace traditional rotary tables, there by meeting application requirements for high-precision circular conveying.

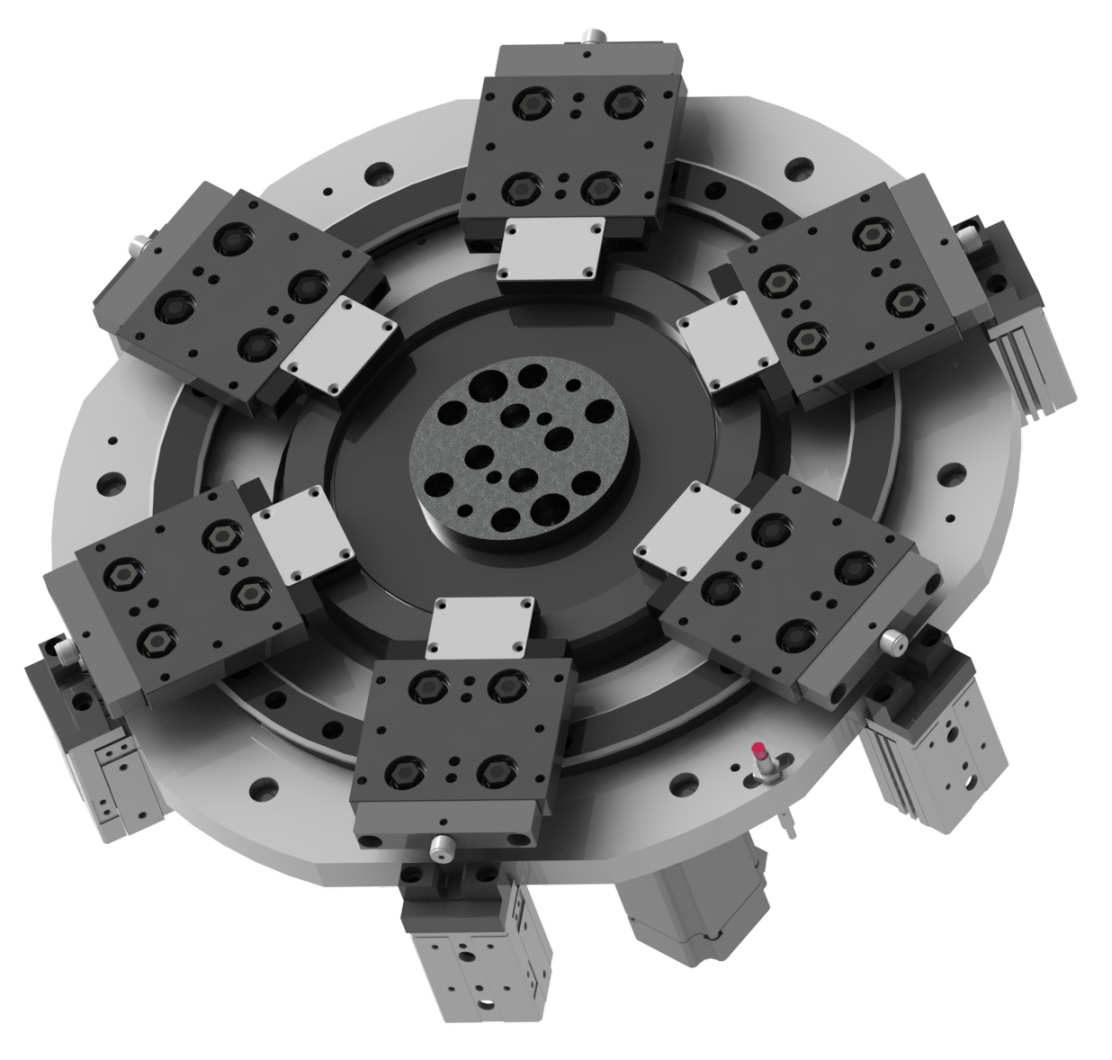

Shape-Circular
Base structure
Precision chain drive

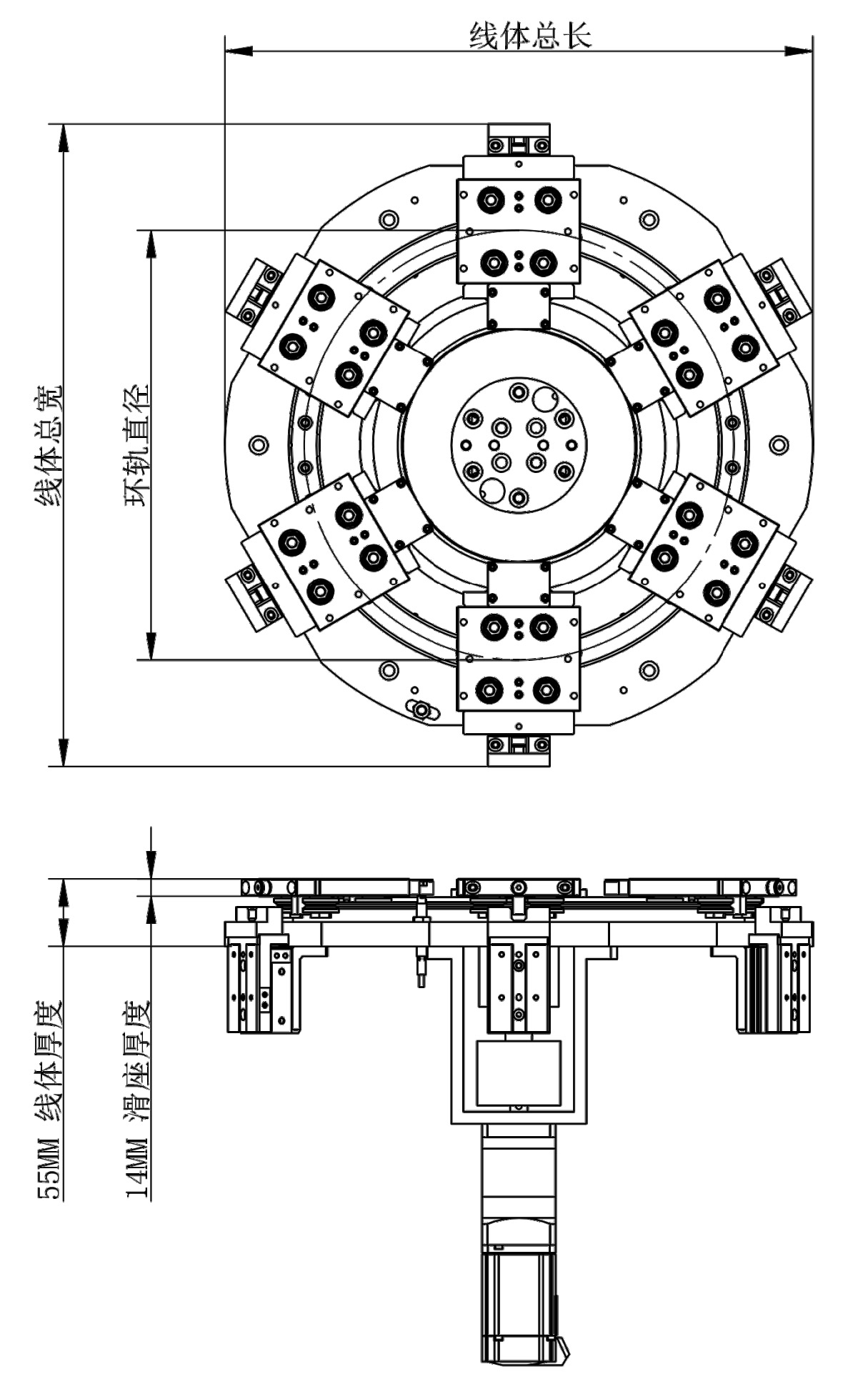

*Commonly used Circular guideway diameter is 255-600 mm, the parameter table of the Circular guideway can refer to our《GMP Series Products》
*We provide 25 mm, 44 mm, 76 mm these three specifcations of guide rail for you to choose.
*Speed is related to load size, circular guideway size and off-load condition.
*The Angle of the turn and the shape of the line body can be customized according to the need to communicate.
*Optional ranges of repeated positioning accuracy are: ±0.05~±0.5 mm. Accuracy and track specifications are matched
