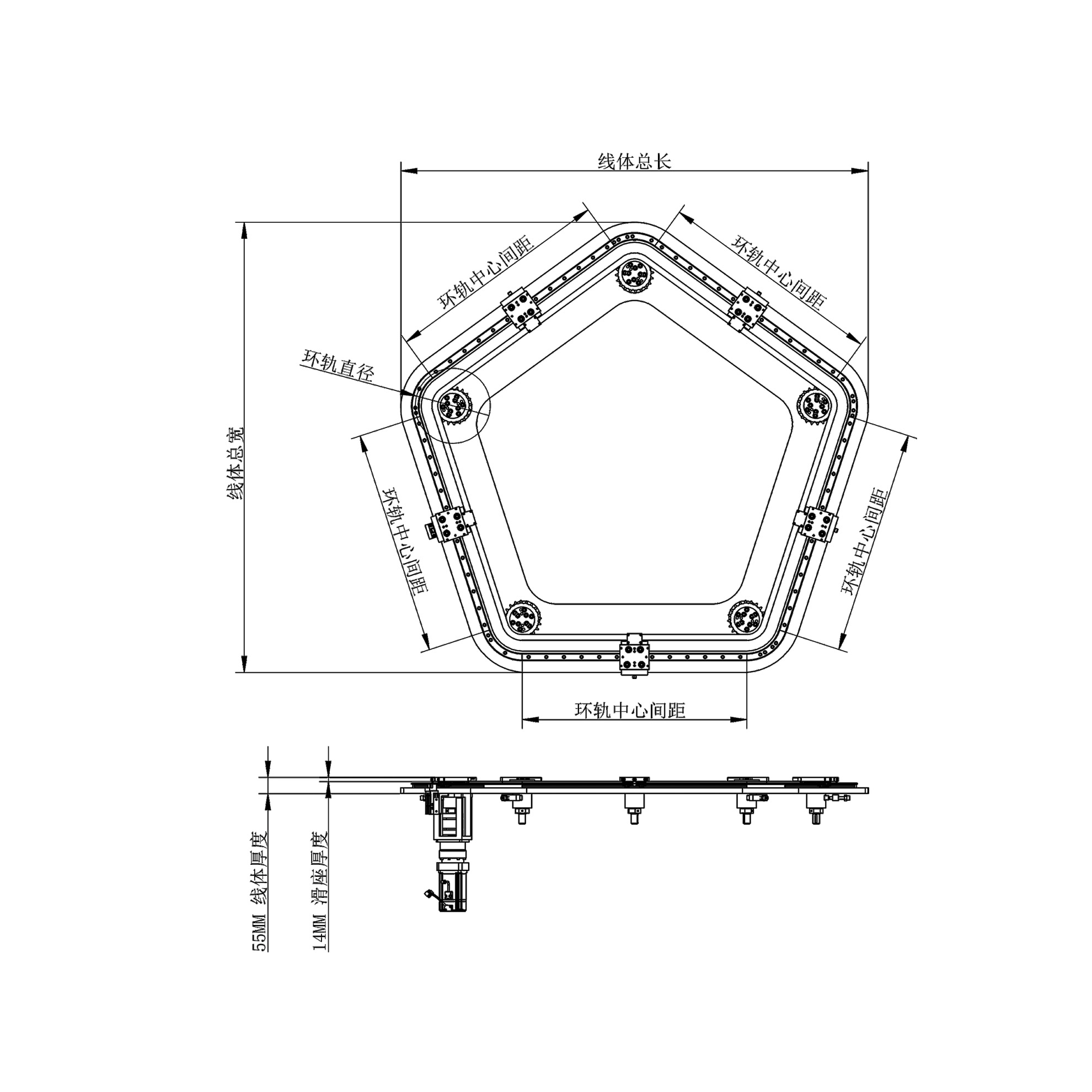

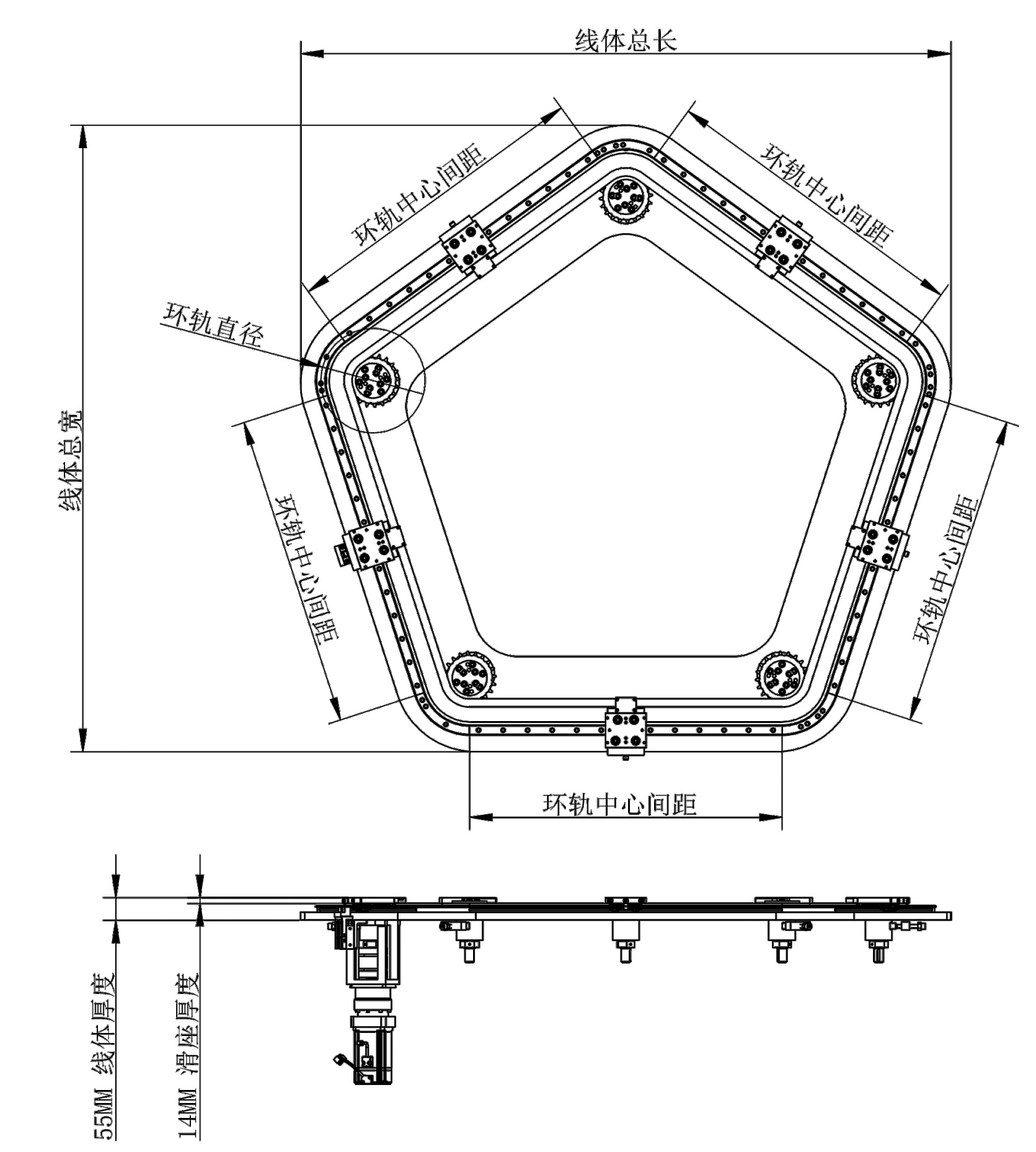

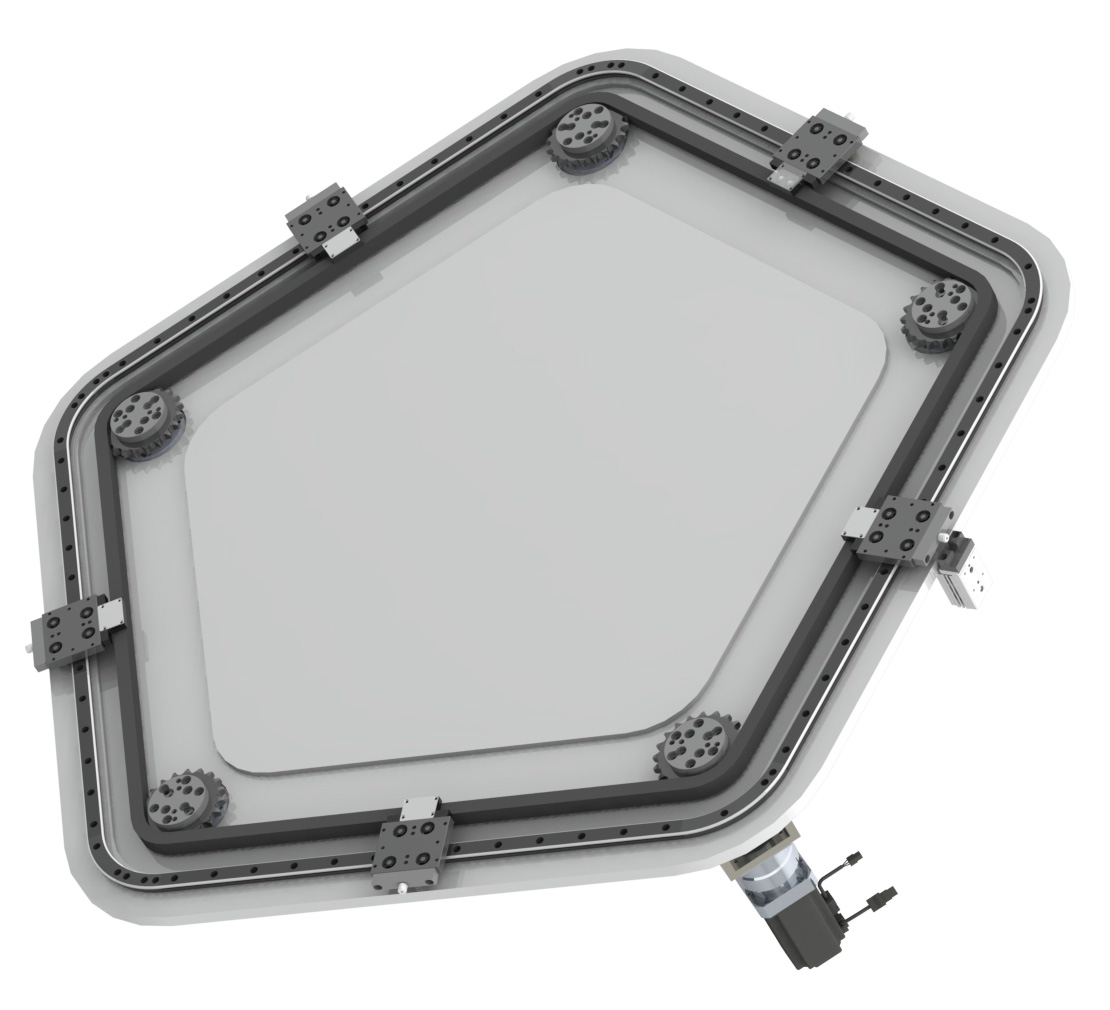

The regular pentagonal annular guide rail circulation conveyor system features a symmetrical design with equal sides and equal angles, incorporating a base plate support structure and V-shaped guide rails for precise guidance and load-bearing capability. The system operates smoothly and offers high positioning accuracy. It can be customized as an alternative to traditional rotary table-based conveyor systems, effectively meeting the requirements of advanced high-precision and non-standard cyclic conveying applications.

Structural Features

○ Shape-Polygon

○ Base structure

○ Precision chain drive

○ Multilateral andmulti-angle

Non-standard customization description

*Commonly used Circular guideway diameter is 255~600 mm, the parameter table of the Circular guideway can refer to our《GMP Series Products》.

*We provide 25 mm, 44 mm, 76 mm these three specifcations of guide rail for you to choose.

*Speed is related to load size, circular guideway size and off-load condition.

*The Angle of the turn and the shape of the line body can be customized according to the need to communicate.

* Optional ranges of repeated positioning accuracy are:±0.05-±0.5 mm
