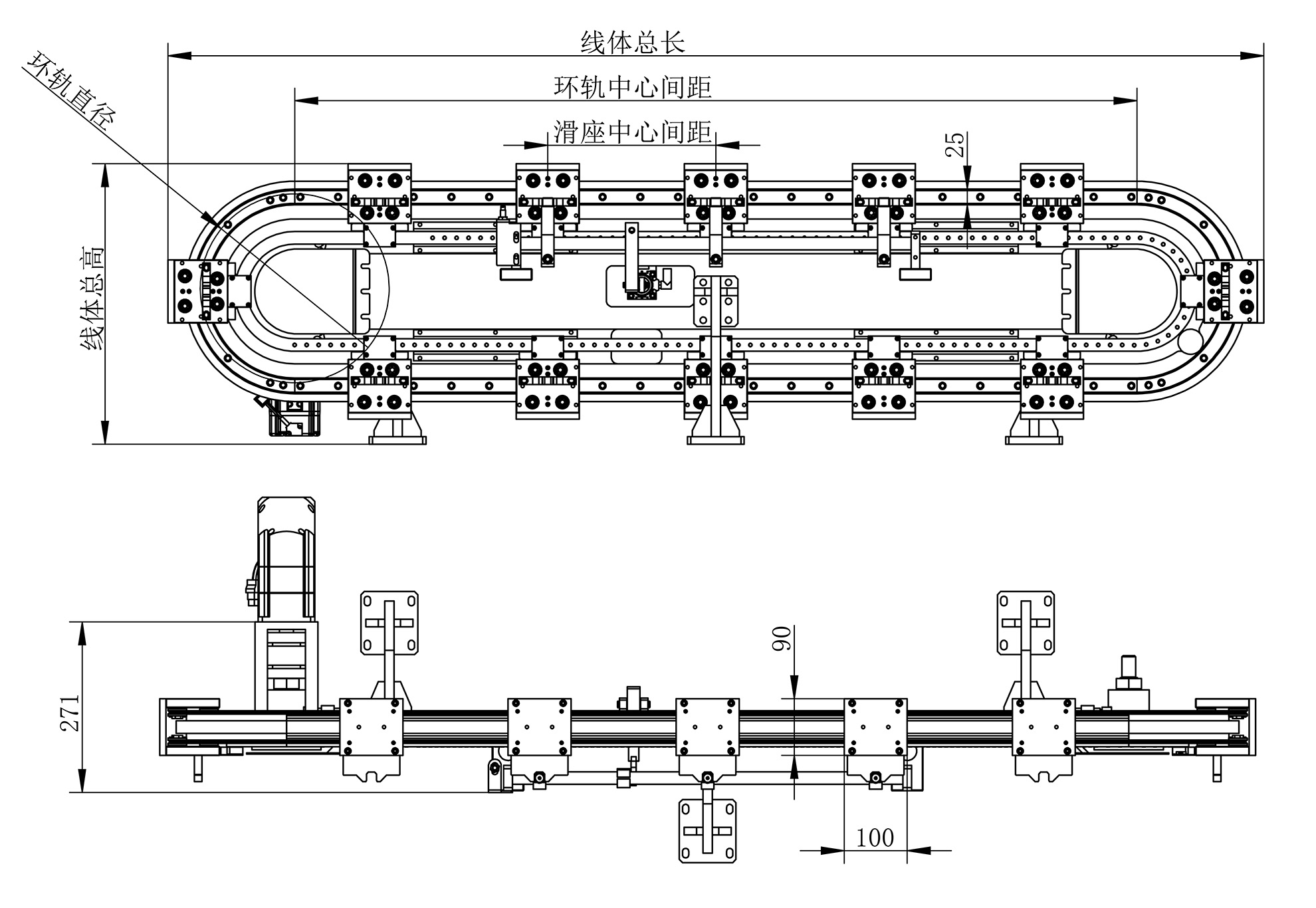

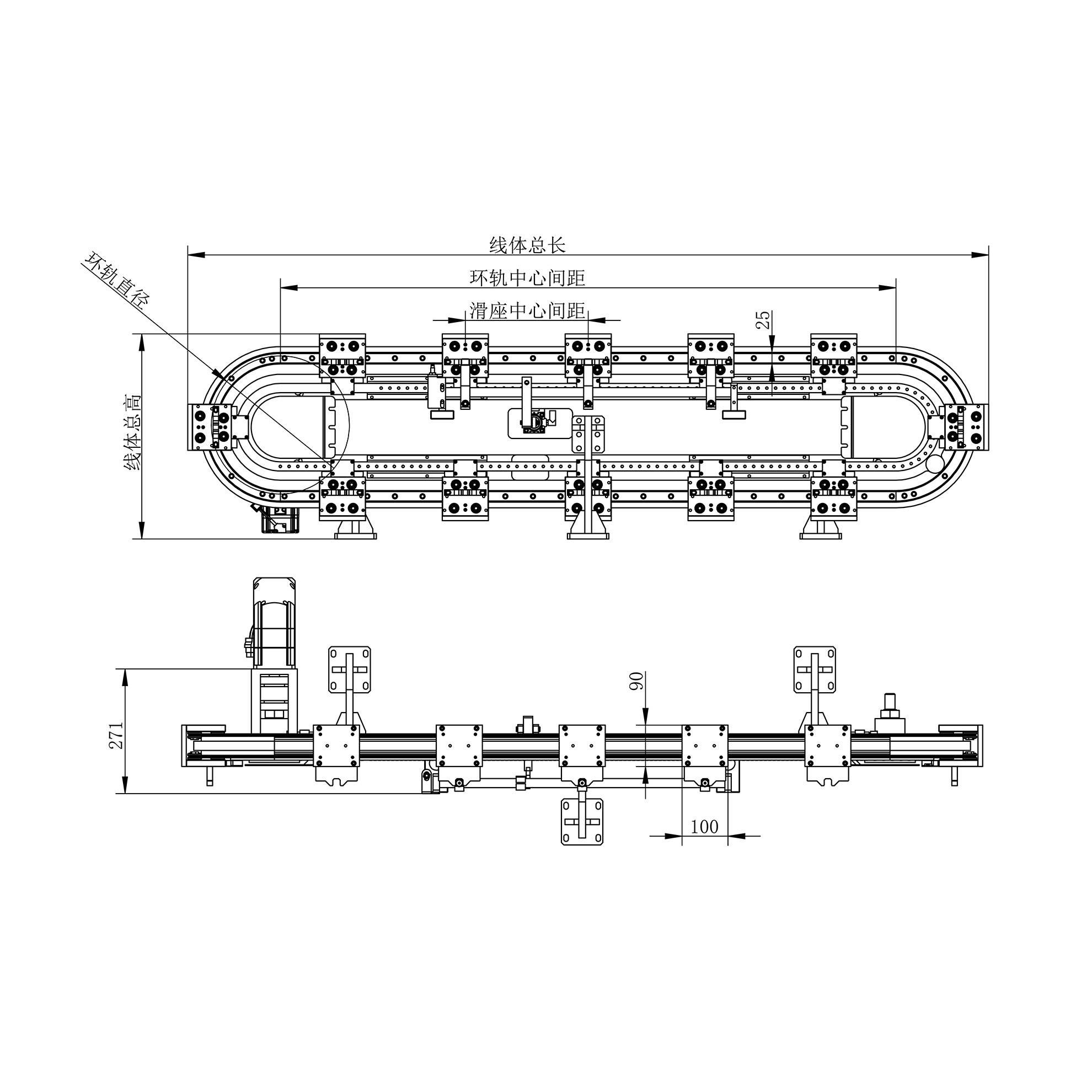

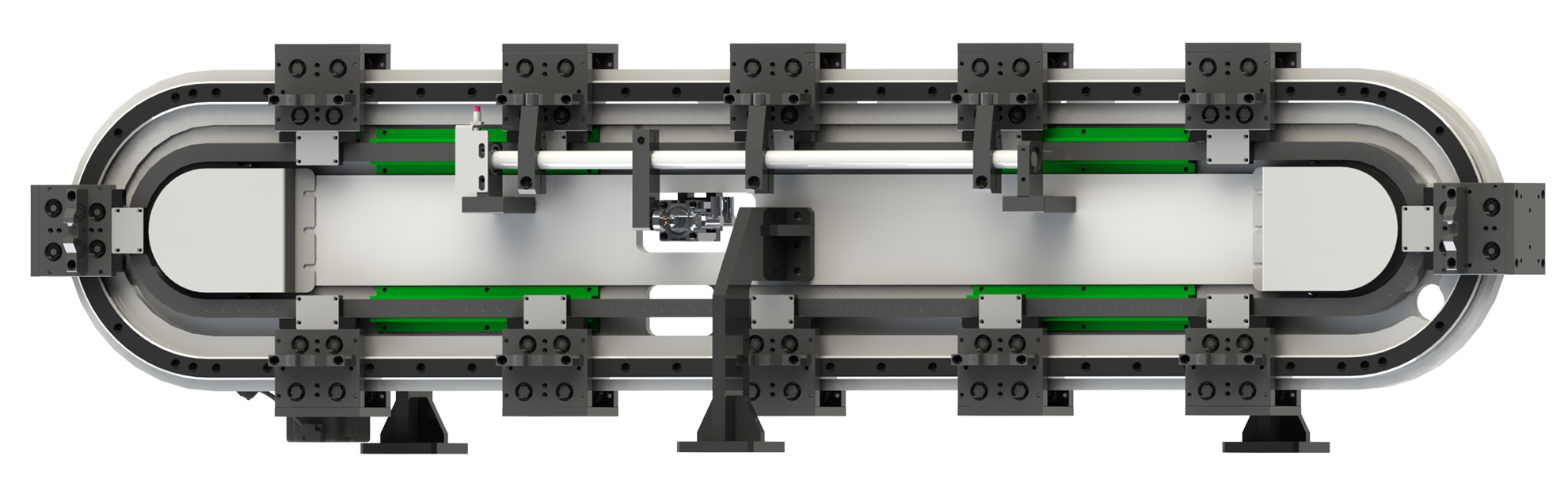

The 25-series elliptical vertical single-base-plate double-track circular guide rail conveyor system is designed for automated production and manufacturing environments requiring high-speed, high-precision transportation of lightweight, medium-to-small-sized products.

Structural Features

• Geometry: Oval configuration

• Installation: Vertical orientation with base plate support structure

• Drive Mechanism: Precision chain drive system

• Rail Configuration: Dual circular guide rails positioned on both sides of the base plate

• Guidance Solution: Utilization of V-type light-load guide rails

Application Features

• Suitable for medium- to long-distance conveying, with a maximum track perimeter of up to 50 meters

• Designed for light-load applications, supporting a maximum rated load of 30 kg per slider

• Capable of intermittent operation with flexible multi-speed switching functionality

• Repeatability and positioning accuracy ranging from ±0.05 mm to ±0.5 mm

The double-track circular guide rail conveyor system involves complex design and application considerations. While the provided parameters—including dimensions, load capacity, and speed—are intended as reference values, the actual feasibility and optimal configuration must be evaluated based on specific operational requirements. Our engineering team will conduct a comprehensive technical assessment to develop a customized and suitable solution accordingly.
