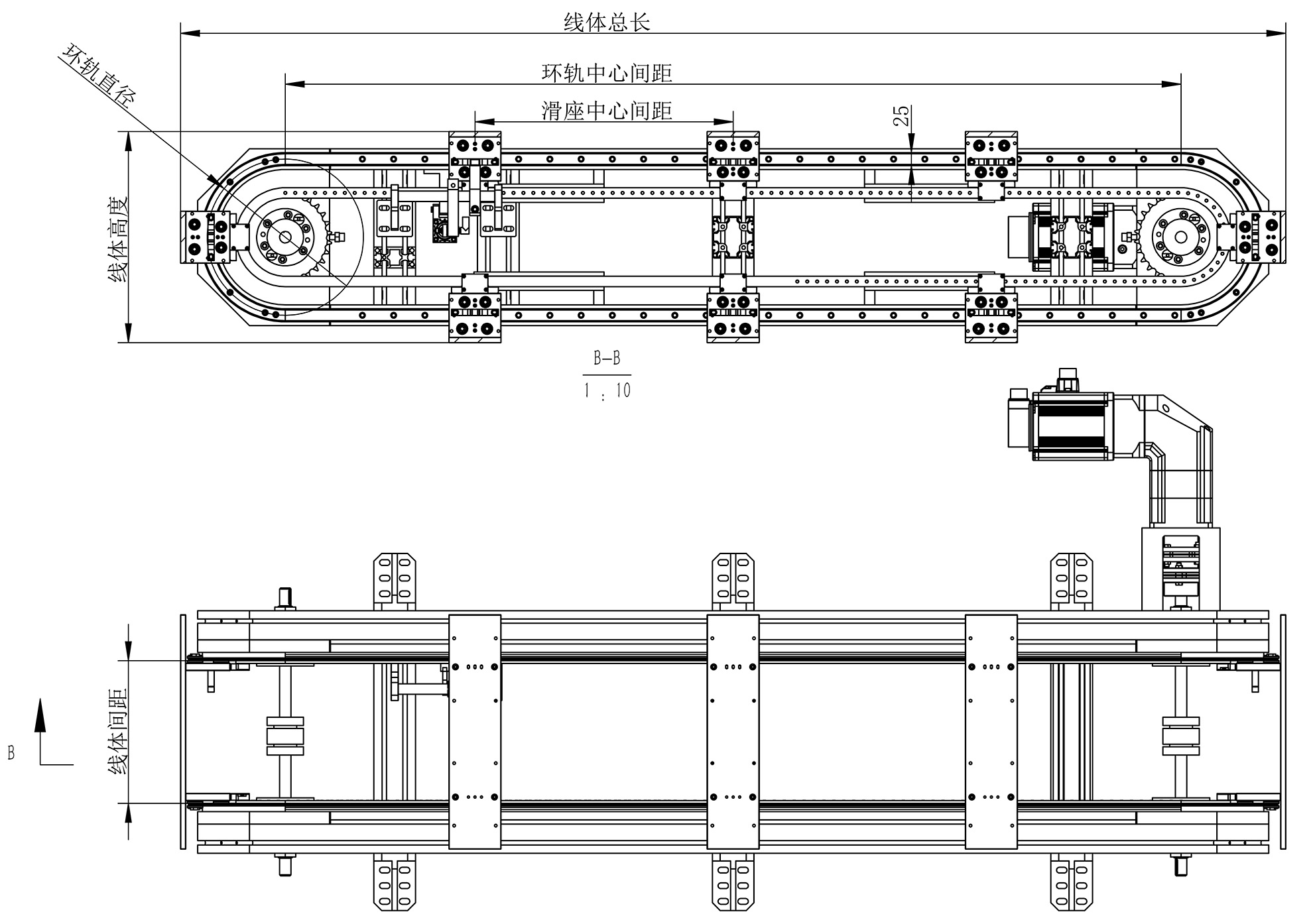

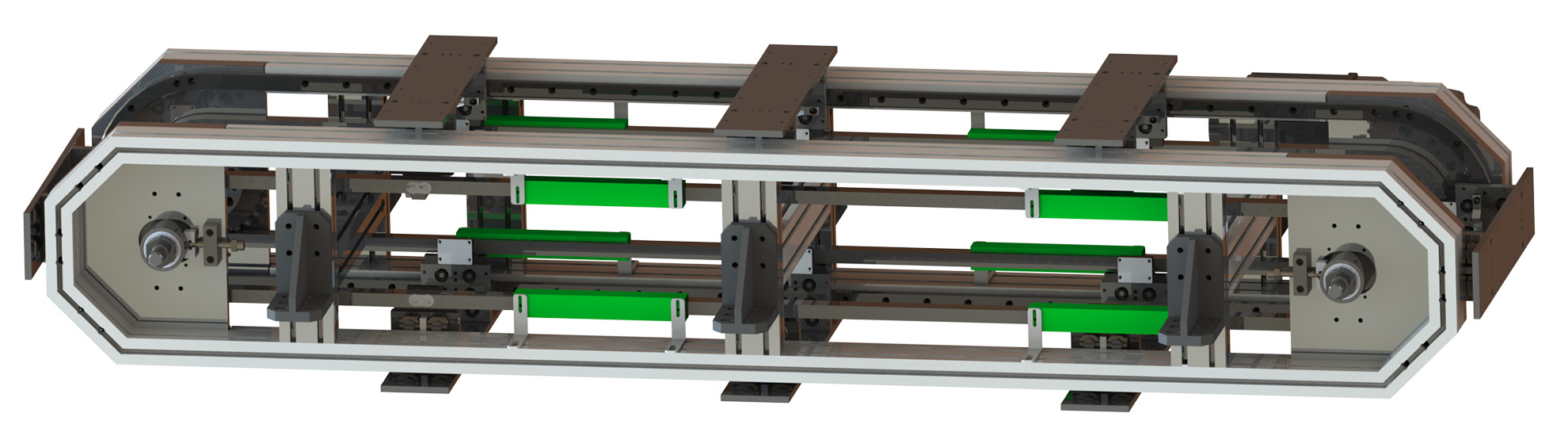

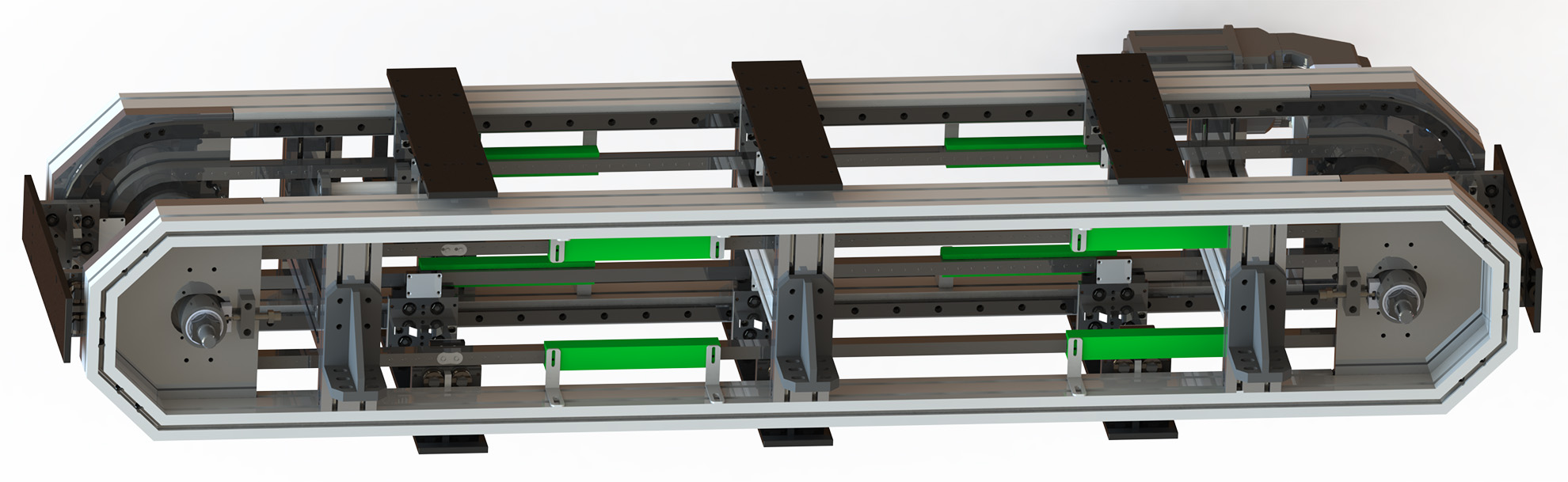

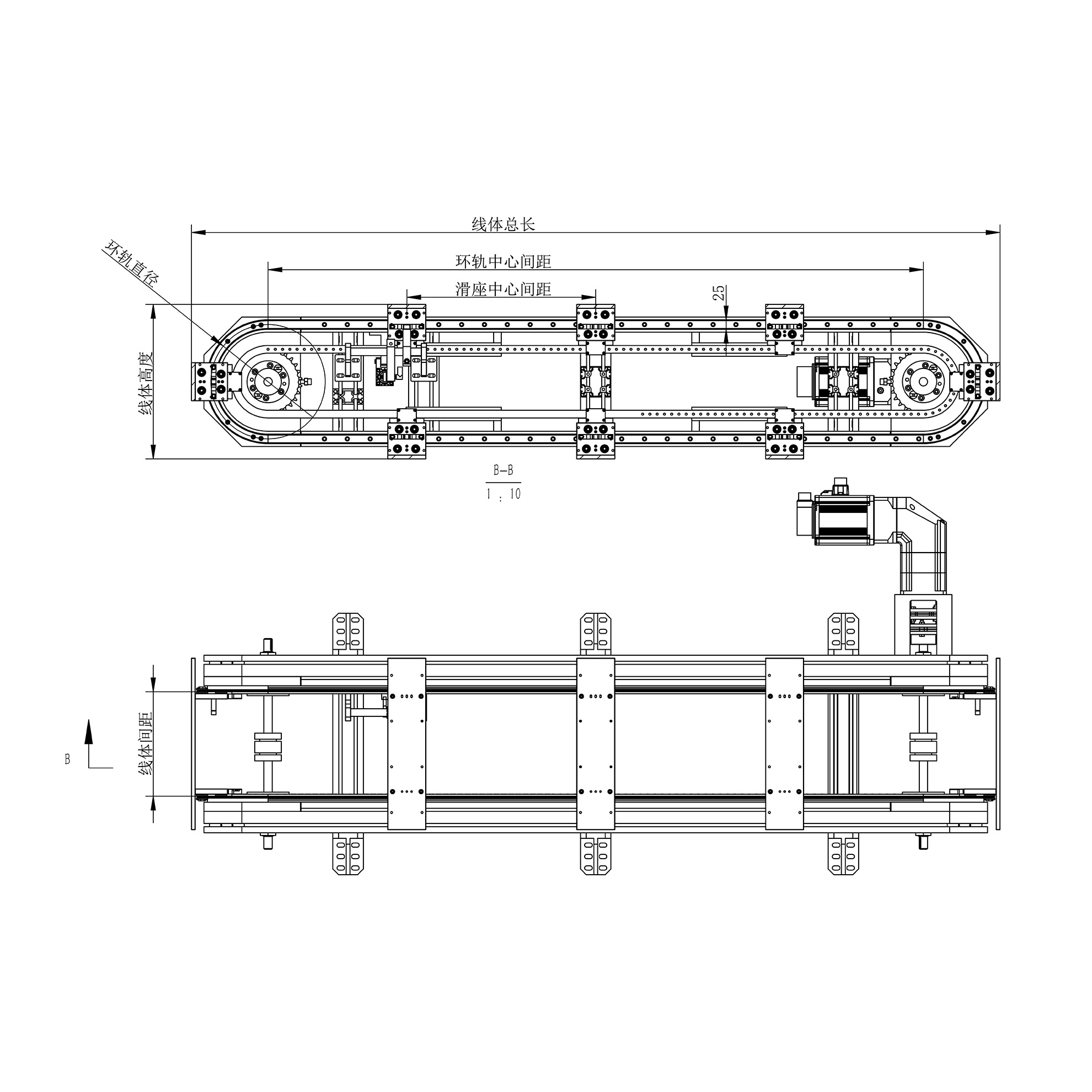

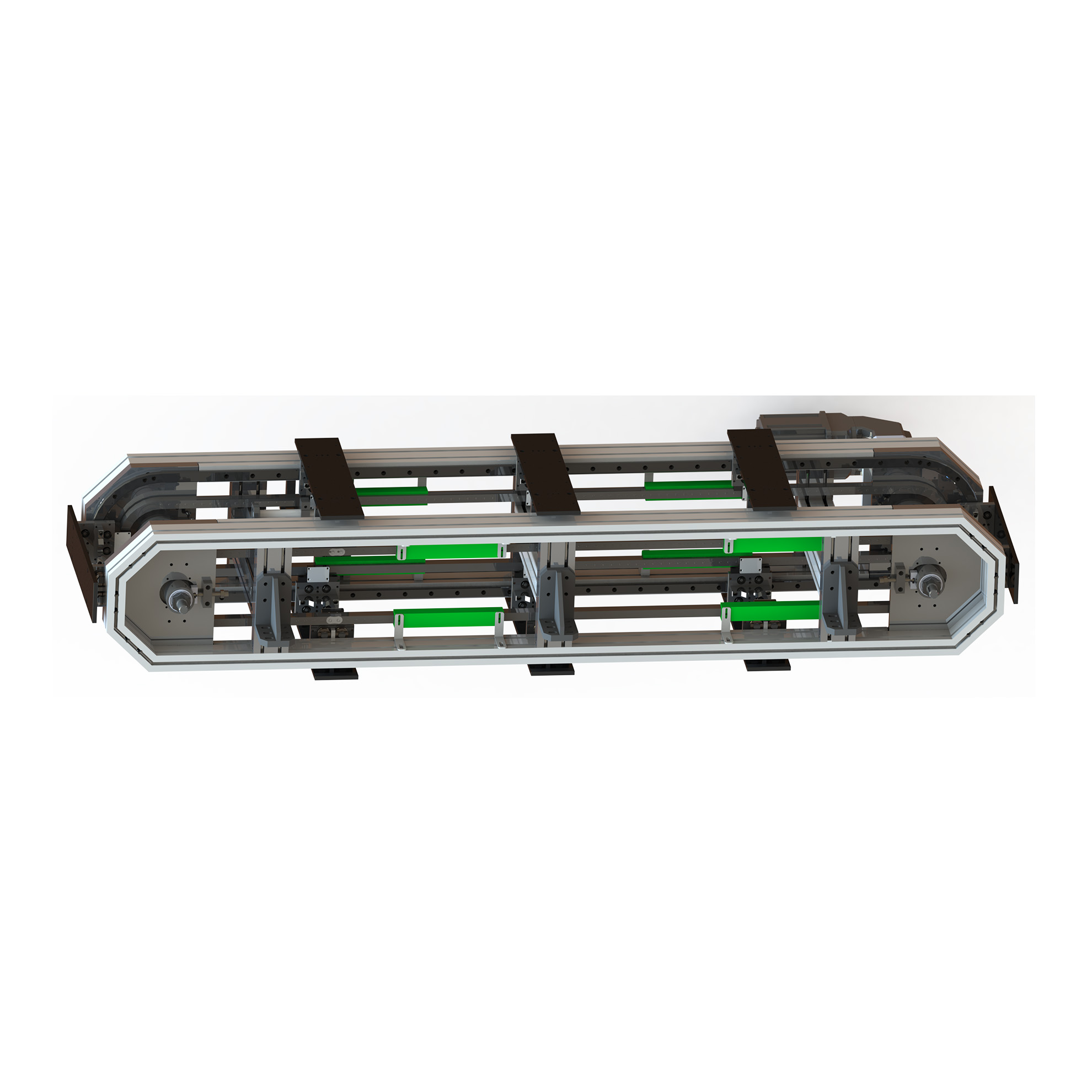

The 25 series elliptical-profile vertical double-track annular guide rail conveyor system is designed for automated production and manufacturing environments that require high-speed, high-precision conveying of lightweight, large-volume products.

Structural Features

- Oval-shaped profile frame structure

- High-precision chain drive mechanism

- Inner-mounted circular guide rail integrated within the profile frame

Application Characteristics

- Suitable for medium to long-distance transportation, with a maximum track perimeter of up to 50 meters

- Light-load capacity, supporting a maximum rated load of 20 kg per slider

- Capable of intermittent operation with flexible multi-speed switching functionality

- Repeat positioning accuracy ranging from ±0.05 mm to ±0.5 mm

The double-track circular guide rail conveyor system involves complex design and application considerations. While the provided parameters—including dimensions, load capacity, and speed—are intended as reference values, the actual feasibility and optimal configuration must be evaluated based on specific operational requirements. Our engineering team will conduct a comprehensive technical assessment to develop a customized and suitable solution accordingly.
